PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

Name: PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment
Brand: Sussman
Price: 1 USD

Quality PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment for sale

Brand Name : Sussman

Certification : CE, ISO9001,SGS

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 Set Per Month

Delivery Time : 60 Days after deposit

Packaging Details : Film and steel

Model Number : SS - RR

Working speed : 12-15m/min

Station number : 17 Stations

Main power : 11KW

Material of shaft : 45# steel

Material of roller : Gcr15

Profile thickness : 1.5-2.0mm

Contact Now

PLC Control Racking Roll Forming Machine Upright Shelf Making Equipment

Main Roll forming machine technique data

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel S235JR

2. Working Speed: 12-15 meters / min

3. Forming machine: 17 stations, 16 stations for forming, and one station for embossing the LOGO, Arch way

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts

7. Main Power with reducer: 11KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

Spare parts

	Name	Number
Tools	Feeler gauge	1
	Size spanner	1
	Inner hexagon spanner	1
	Clamp	1
	Standard spanner	1
	Shifting spanner	1
	Slotted screwdriver	1
Other accessories	Chain	6 pieces
	Chain connector	20 pieces
	Bearing (Haerbin)	20 pieces

Machine Layout

Decoiling---Guiding and Leveling---Punching---Roll Forming----Cutting----Product Collecting

PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

Profile drawing

PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

Products

PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

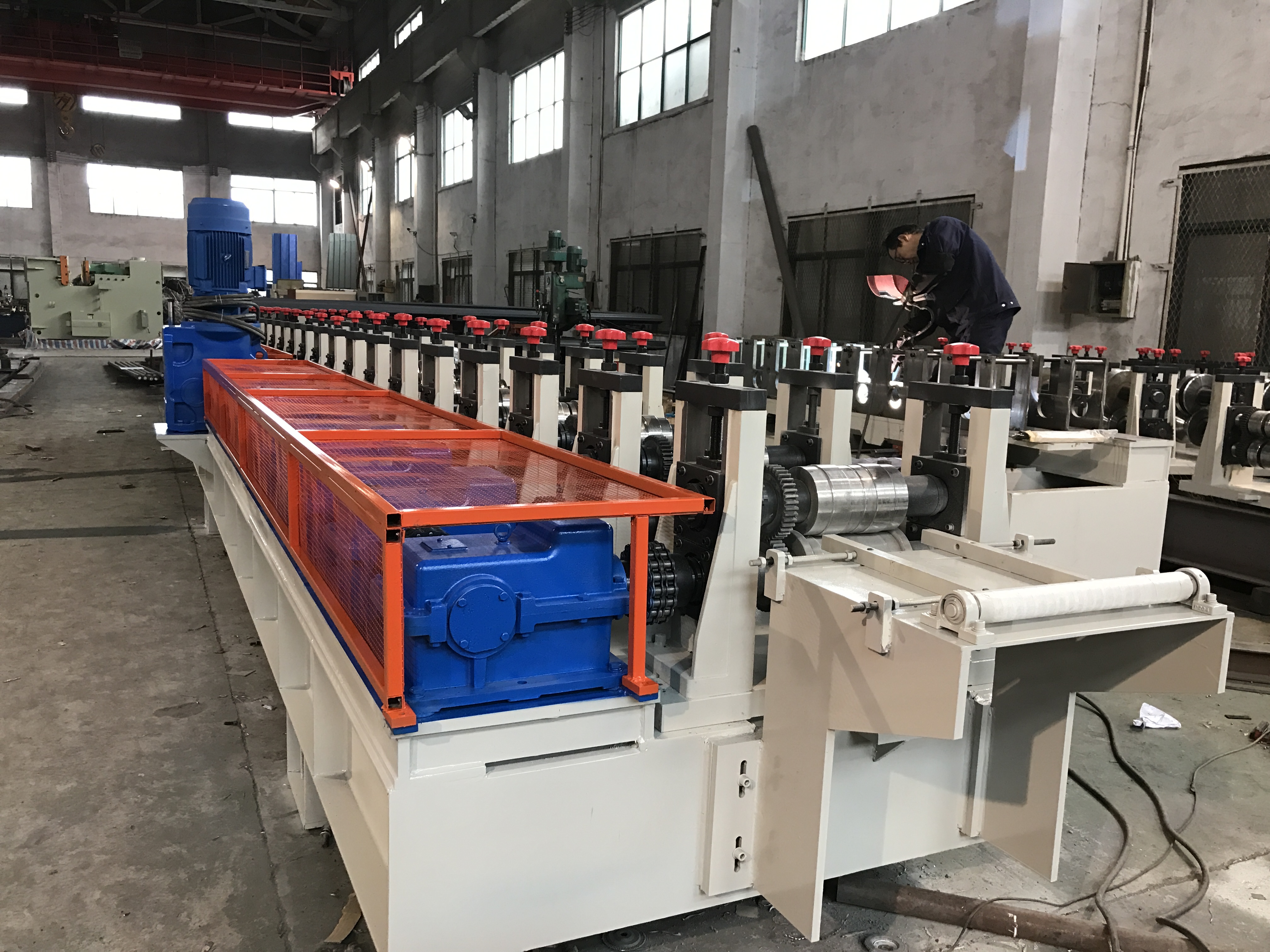

Machine pictures

PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment
